[BOOTSTRAP] sample(네비게이션바, 썸네일)

개인공부/Bootstrap

[BOOTSTRAP] sample(네비게이션바, 썸네일)

octopengj 2020. 10. 5. 14:27

다음과 같은 구조의 레이아웃을 만들어 본다.

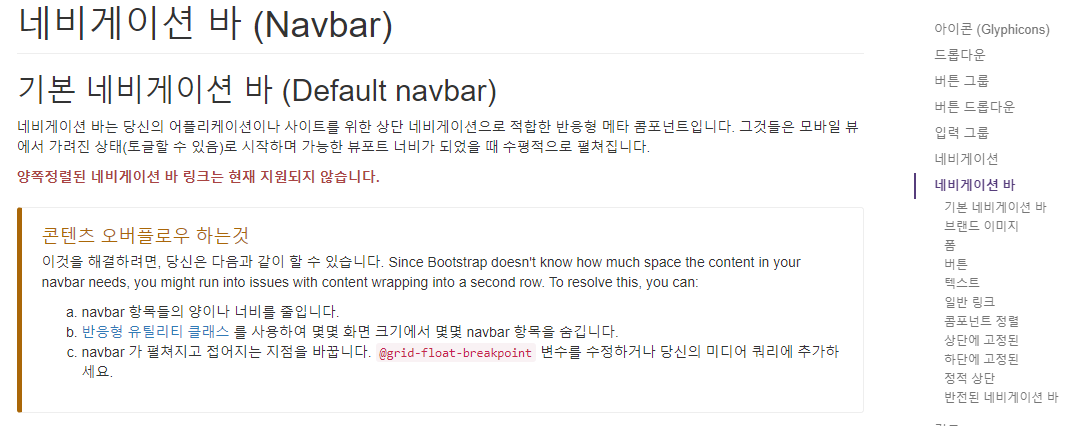

부트스트랩 사이트에 접속하여 컴포넌트섹션으로 접속한다.

콤포넌트 · 부트스트랩

Some default panel content here. Nulla vitae elit libero, a pharetra augue. Aenean lacinia bibendum nulla sed consectetur. Aenean eu leo quam. Pellentesque ornare sem lacinia quam venenatis vestibulum. Nullam id dolor id nibh ultricies vehicula ut id elit.

bootstrapk.com

네비게이션 바를 검색하여 코드를 복사하여 붙여넣기 한다.

<nav class="navbar navbar-default">
  <div class="container-fluid">
    <!-- Brand and toggle get grouped for better mobile display -->
    <div class="navbar-header">
      <button type="button" class="navbar-toggle collapsed" data-toggle="collapse"
      data-target="#bs-example-navbar-collapse-1">
        <span class="sr-only">Toggle navigation</span>
        <span class="icon-bar"></span>
        <span class="icon-bar"></span>
        <span class="icon-bar"></span>
      </button>
      <a class="navbar-brand" href="#">Brand</a>
    </div>

    <!-- Collect the nav links, forms, and other content for toggling -->
    <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
      <ul class="nav navbar-nav">
        <li class="active"><a href="#">Link <span class="sr-only">(current)</span></a></li>
        <li><a href="#">Link</a></li>
        <li class="dropdown">
          <a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button"
          aria-expanded="false">Dropdown <span class="caret"></span></a>
          <ul class="dropdown-menu" role="menu">
            <li><a href="#">Action</a></li>
            <li><a href="#">Another action</a></li>
            <li><a href="#">Something else here</a></li>
            <li class="divider"></li>
            <li><a href="#">Separated link</a></li>
            <li class="divider"></li>
            <li><a href="#">One more separated link</a></li>
          </ul>
        </li>
      </ul>
      <form class="navbar-form navbar-left" role="search">
        <div class="form-group">
          <input type="text" class="form-control" placeholder="Search">
        </div>
        <button type="submit" class="btn btn-default">Submit</button>
      </form>
      <ul class="nav navbar-nav navbar-right">
        <li><a href="#">Link</a></li>
        <li class="dropdown">
          <a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button"
          aria-expanded="false">Dropdown <span class="caret"></span></a>
          <ul class="dropdown-menu" role="menu">
            <li><a href="#">Action</a></li>
            <li><a href="#">Another action</a></li>
            <li><a href="#">Something else here</a></li>
            <li class="divider"></li>
            <li><a href="#">Separated link</a></li>
          </ul>
        </li>
      </ul>
    </div><!-- /.navbar-collapse -->
  </div><!-- /.container-fluid -->
</nav>

몇가지 정보만 수정하여 아래와 같이 구성하였다.

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Bootstrap</title>
    <link rel="stylesheet" href="/css/bootstrap.css">

</head>
<body>

<div class="container" style="padding-top: 20px">
    <nav class="navbar navbar-default">
        <div class="container-fluid">
          <!-- Brand and toggle get grouped for better mobile display -->
          <div class="navbar-header">
            <button type="button" class="navbar-toggle collapsed" data-toggle="collapse"
            data-target="#bs-example-navbar-collapse-1">
              <span class="sr-only">Toggle navigation</span>
              <span class="icon-bar"></span>
              <span class="icon-bar"></span>
              <span class="icon-bar"></span>
            </button>
            <a class="navbar-brand" href="#">&JH</a>
          </div>

          <!-- Collect the nav links, forms, and other content for toggling -->
          <div class="collapse navbar-collapse" id="bs-example-navbar-collapse-1">
            <ul class="nav navbar-nav">
              <li><a href="#">HTML <span class="sr-only">(current)</span></a></li>
              <li><a href="#">CSS</a></li>
              <li><a href="#">JAVA</a></li>
              <li class="dropdown">
                <a href="#" class="dropdown-toggle" data-toggle="dropdown" role="button"
                aria-expanded="false">Dropdown <span class="caret"></span></a>
                <ul class="dropdown-menu" role="menu">
                  <li><a href="#">Action</a></li>
                  <li><a href="#">Another action</a></li>
                  <li><a href="#">Something else here</a></li>
                  <li class="divider"></li>
                  <li><a href="#">Separated link</a></li>
                  <li class="divider"></li>
                  <li><a href="#">One more separated link</a></li>
                </ul>
              </li>
            </ul>
            <form class="navbar-form navbar-right" role="search">
              <div class="form-group">
                <input type="text" class="form-control" placeholder="Search">
              </div>
              <button type="submit" class="btn btn-default">검색</button>
            </form>
              </li>
            </ul>
          </div><!-- /.navbar-collapse -->
        </div><!-- /.container-fluid -->
      </nav>
</div>

<script src="https://ajax.googleapis.com/ajax/libs/jquery/3.3.1/jquery.min.js"></script>
<script type="text/javascript" src="js/bootstrap.js"></script>

</body>
</html>

부트스트랩 링크와 자바스크립트, 제이쿼리 스크립트를 셋팅하였고

네비게이션바에 padding-top:20px 적용하였다.

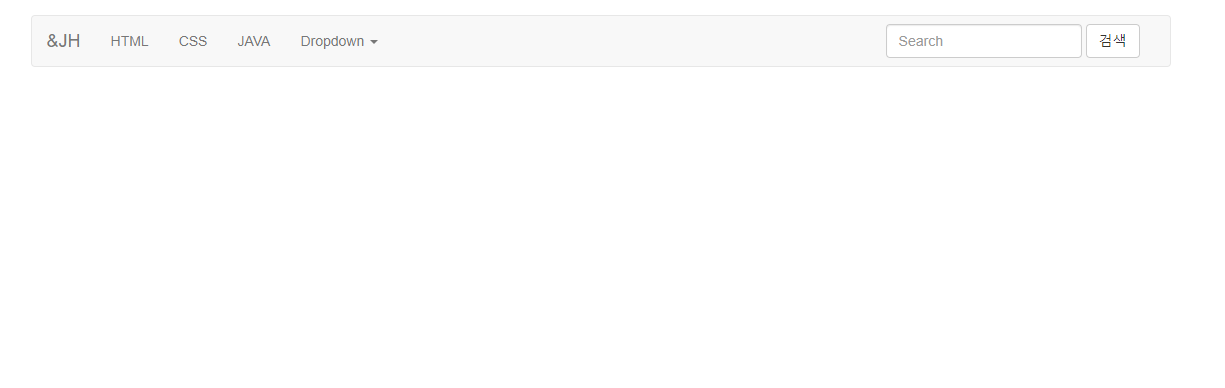

결과화면은 아래와 같다.

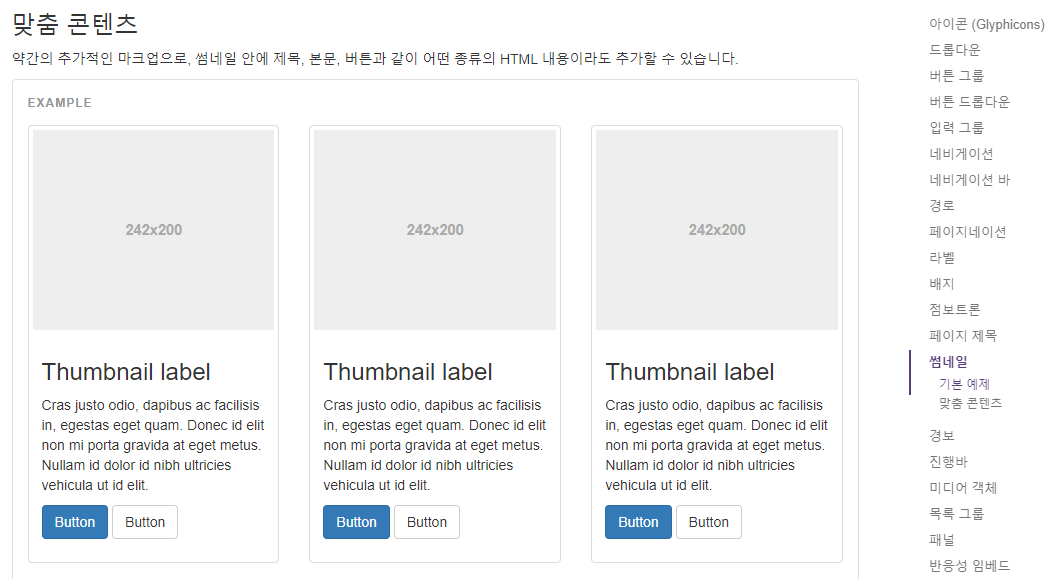

다음은 아래의 경로에서 썸네일을 불러서 적용할 것이다.

bootstrapk.com/components/#thumbnails

콤포넌트 · 부트스트랩

bootstrapk.com

<div class="row">
  <div class="col-sm-6 col-md-4">
    <div class="thumbnail">
      <img src="..." alt="...">
      <div class="caption">
        <h3>Thumbnail label</h3>
        <p>...</p>
        <p><a href="#" class="btn btn-primary" role="button">Button</a> </p>
      </div>
    </div>
  </div>
</div>

위의 코드를 복사하여 작성하고 버튼은 하나 삭제하여 작성하였다.

<div class="container">
    <div class="row">
        <div class="col-sm-6 col-md-3">
            <div class="thumbnail">
                <img src="https://cdn.pixabay.com/photo/2016/01/19/17/57/car-1149997_960_720.jpg" alt="...">
                <div class="caption">
                  <h3>Thumbnail label</h3>
                  <p>...</p>
                  <p><a href="#" class="btn btn-primary" role="button">Button</a></p>
                </div>
              </div>
        </div>
        <div class="col-sm-6 col-md-3"></div>
        <div class="col-sm-6 col-md-3"></div>
        <div class="col-sm-6 col-md-3"></div>
    </div>
    <div class="row">
        <div class="col-sm-6 col-md-3"></div>
        <div class="col-sm-6 col-md-3"></div>
        <div class="col-sm-6 col-md-3"></div>
        <div class="col-sm-6 col-md-3"></div>
    </div>
</div>

이미지는 pixabay의 무료이미지를 찾아서 넣어주었다.

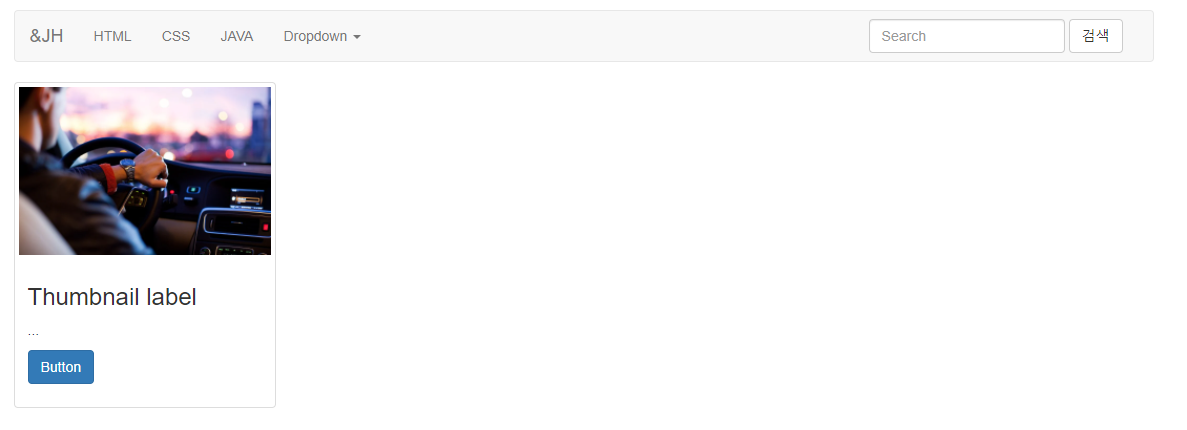

결과화면은 아래와 같다.

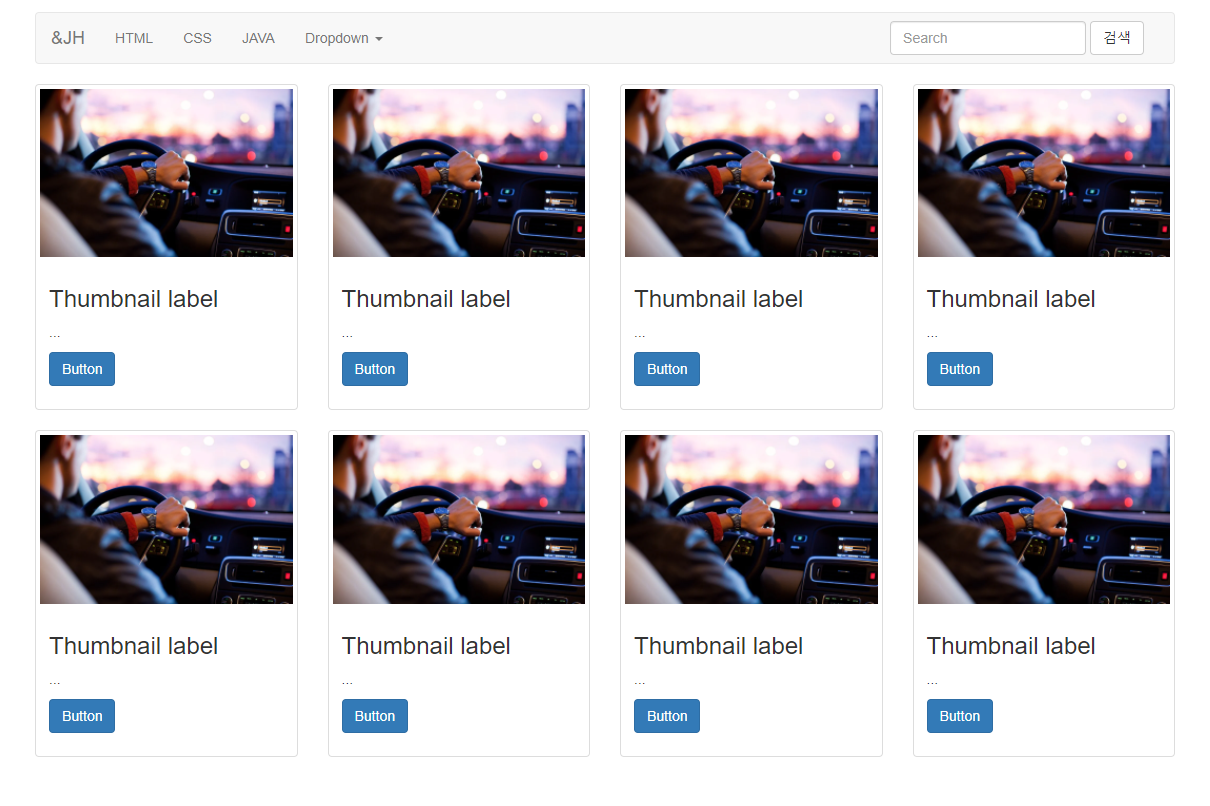

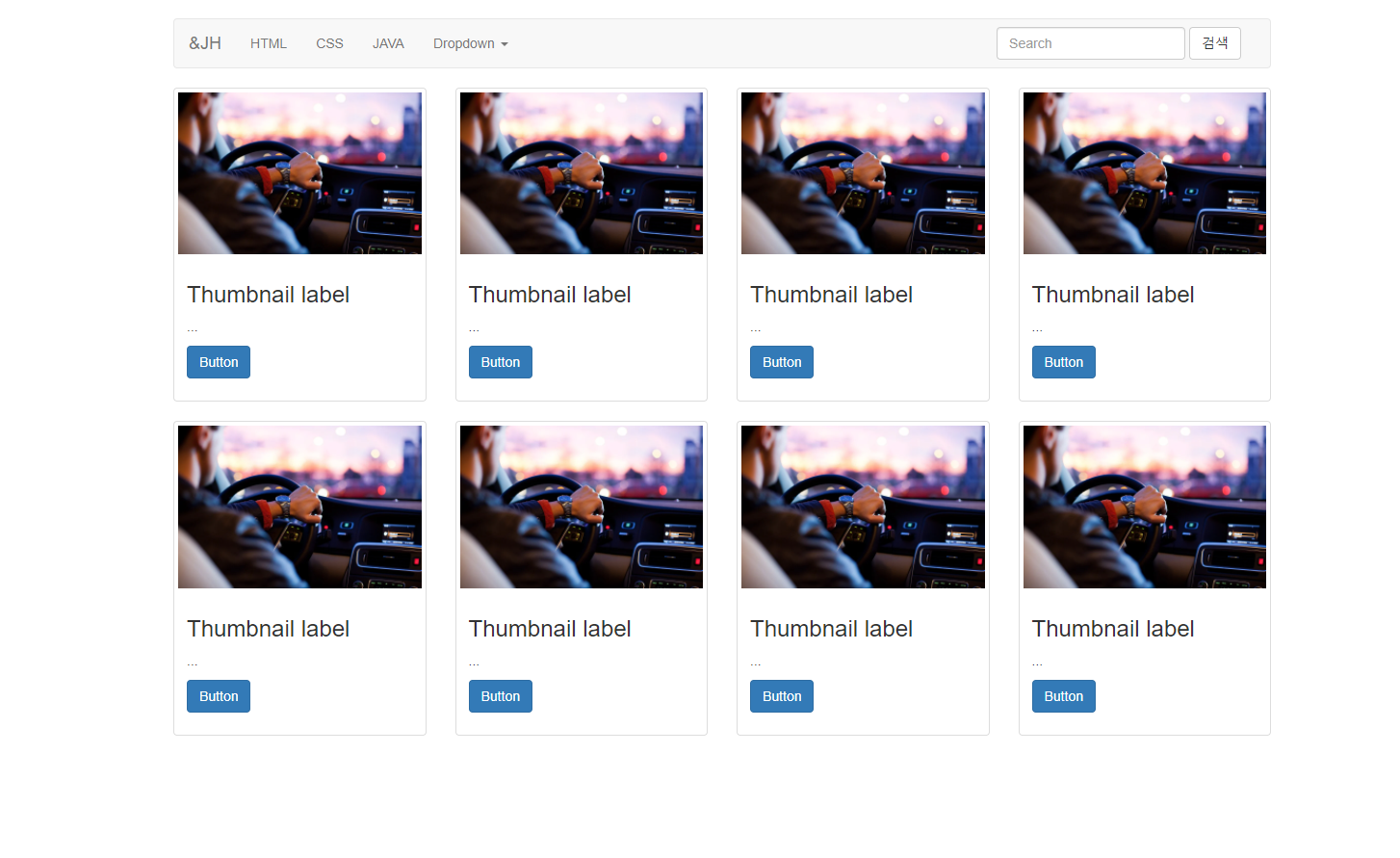

나머지 영역도 똑같이 복사하여 붙여넣기 하면 아래와 같은 결과를 얻을 수 있다.

<div class="container">
    <div class="row">
        <div class="col-sm-6 col-md-3">
            <div class="thumbnail">
                <img src="https://cdn.pixabay.com/photo/2016/01/19/17/57/car-1149997_960_720.jpg" alt="...">
                <div class="caption">
                  <h3>Thumbnail label</h3>
                  <p>...</p>
                  <p><a href="#" class="btn btn-primary" role="button">Button</a></p>
                </div>
            </div>
        </div>
        <div class="col-sm-6 col-md-3">
            <div class="thumbnail">
                <img src="https://cdn.pixabay.com/photo/2016/01/19/17/57/car-1149997_960_720.jpg" alt="...">
                <div class="caption">
                  <h3>Thumbnail label</h3>
                  <p>...</p>
                  <p><a href="#" class="btn btn-primary" role="button">Button</a></p>
                </div>
            </div>
        </div>
        <div class="col-sm-6 col-md-3">
            <div class="thumbnail">
                <img src="https://cdn.pixabay.com/photo/2016/01/19/17/57/car-1149997_960_720.jpg" alt="...">
                <div class="caption">
                  <h3>Thumbnail label</h3>
                  <p>...</p>
                  <p><a href="#" class="btn btn-primary" role="button">Button</a></p>
                </div>
            </div>
        </div>
        <div class="col-sm-6 col-md-3">
            <div class="thumbnail">
                <img src="https://cdn.pixabay.com/photo/2016/01/19/17/57/car-1149997_960_720.jpg" alt="...">
                <div class="caption">
                  <h3>Thumbnail label</h3>
                  <p>...</p>
                  <p><a href="#" class="btn btn-primary" role="button">Button</a></p>
                </div>
            </div>
        </div>
    </div>
    <div class="row">
        <div class="col-sm-6 col-md-3">
            <div class="thumbnail">
                <img src="https://cdn.pixabay.com/photo/2016/01/19/17/57/car-1149997_960_720.jpg" alt="...">
                <div class="caption">
                  <h3>Thumbnail label</h3>
                  <p>...</p>
                  <p><a href="#" class="btn btn-primary" role="button">Button</a></p>
                </div>
            </div>
        </div>
        <div class="col-sm-6 col-md-3">
            <div class="thumbnail">
                <img src="https://cdn.pixabay.com/photo/2016/01/19/17/57/car-1149997_960_720.jpg" alt="...">
                <div class="caption">
                  <h3>Thumbnail label</h3>
                  <p>...</p>
                  <p><a href="#" class="btn btn-primary" role="button">Button</a></p>
                </div>
            </div>
        </div>
        <div class="col-sm-6 col-md-3">
            <div class="thumbnail">
                <img src="https://cdn.pixabay.com/photo/2016/01/19/17/57/car-1149997_960_720.jpg" alt="...">
                <div class="caption">
                  <h3>Thumbnail label</h3>
                  <p>...</p>
                  <p><a href="#" class="btn btn-primary" role="button">Button</a></p>
                </div>
            </div>
        </div>
        <div class="col-sm-6 col-md-3">
            <div class="thumbnail">
                <img src="https://cdn.pixabay.com/photo/2016/01/19/17/57/car-1149997_960_720.jpg" alt="...">
                <div class="caption">
                  <h3>Thumbnail label</h3>
                  <p>...</p>
                  <p><a href="#" class="btn btn-primary" role="button">Button</a></p>
                </div>
            </div>
        </div>
    </div>
</div>
